Boat monitor's three digital inputs are predefined to Bilge,  Shore and Door for faster installation. However, digital and analog inputs can be configured to interface other sensors.


Digital inputs

Available sensor types for digital inputs currently are:

- Bilge (counting bilge running time in a time frame, send alerts on bilge start)

- Door (sending alerts on door open when Door and motion security feature is enabled)

- PIR (sending alerts on PIR motion when Door and motion security feature is enabled)

- Shore (sending alerts on shore power disconnect)

- Engine hours ( Count time when voltage on the input is present)


Analog inputs

Available sensor types for analog inputs currently are:

- Voltage input (alarm is sent when voltage falls below 11.5V)

- Bilge (counting bilge running time in a time frame, send alerts on bilge start)

- Shore (sending alerts on shore power disconnect)


Procedure

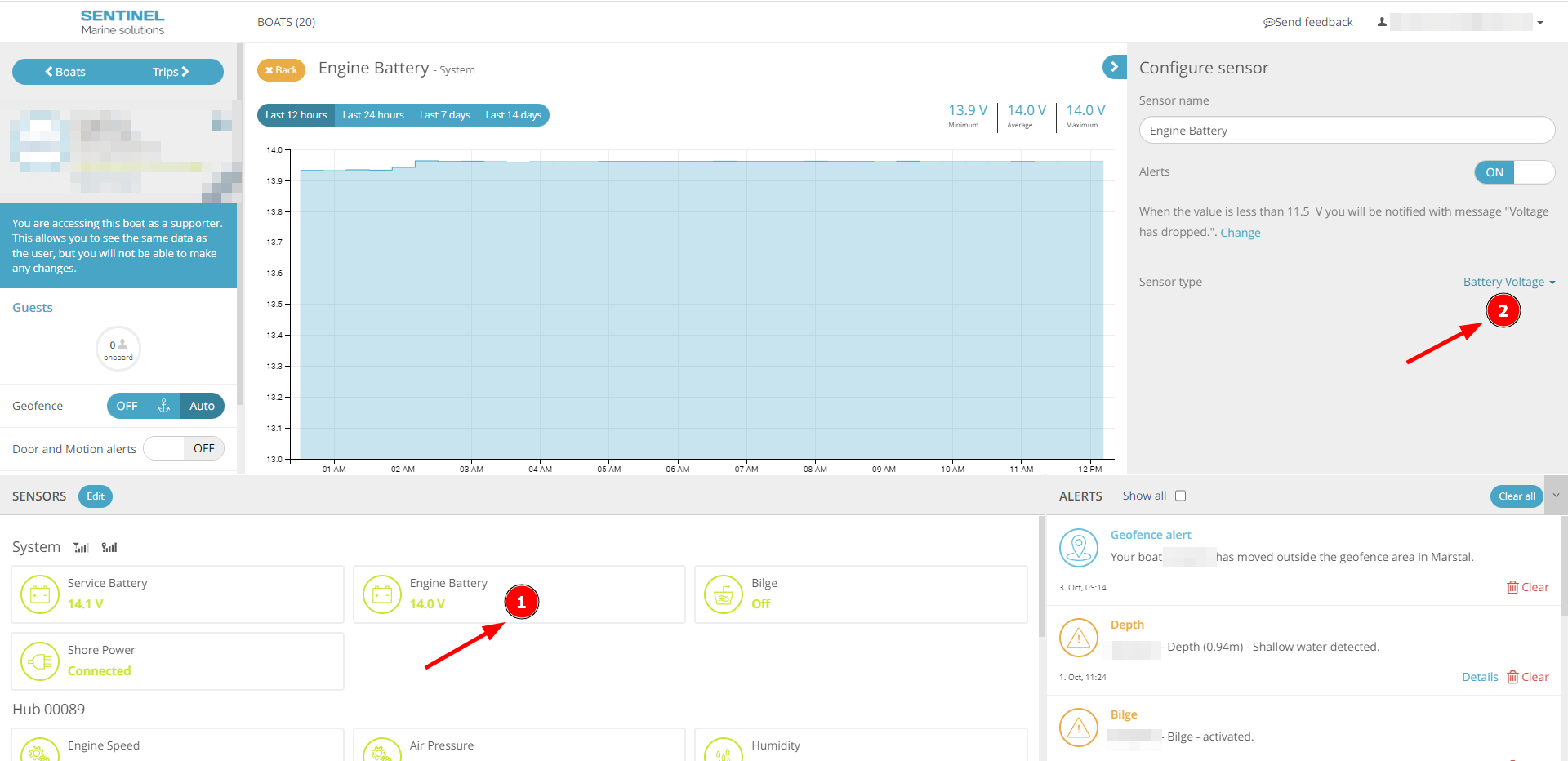

Web app:

    - Click on the sensor you want to change

    - Change Sensor type to any of the available sensors in the configuration panel that opens on the right

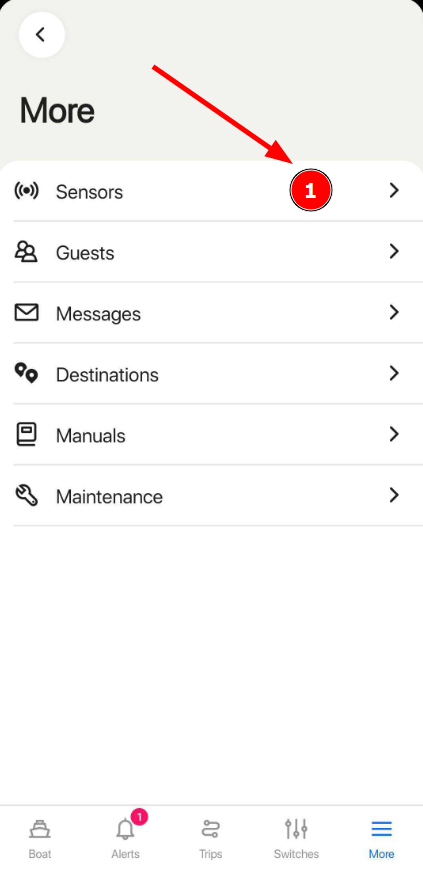

Mobile app (Android / iOS)

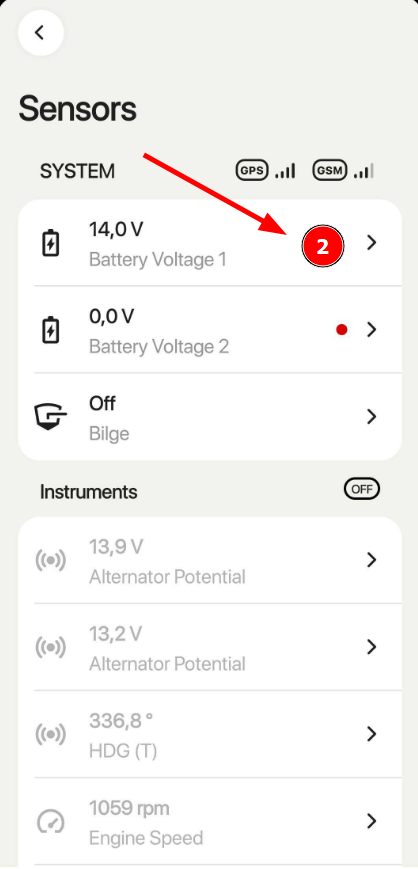

    - On the sensors screen select the sensor you want to change

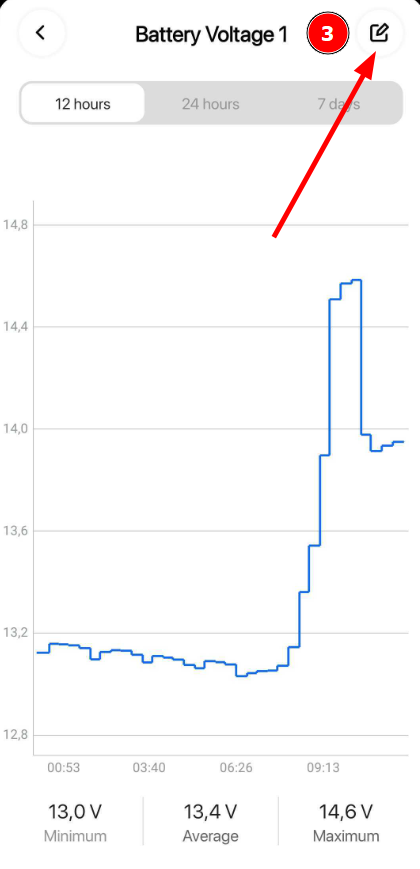

    - Tap on the pencil icon (top right)

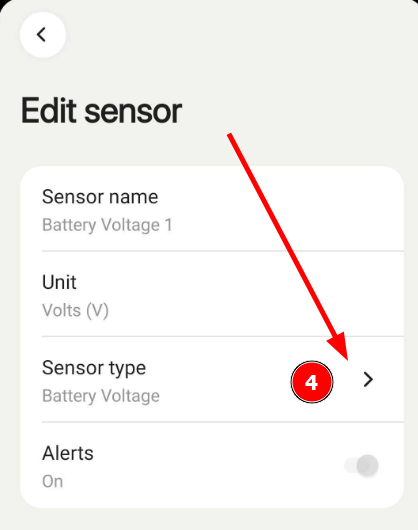

    - Change sensor type

    - Return to the sensors screen





If you have a case that does not fit the described most commonly used types, contact support. We can probably figure something out.
